Design and simulate electronic circuits!
All joking aside, this time you will understand how electronic circuits work.
Build any circuit, tap play button, and watch dynamic voltage, current, and charge animations. This gives you insight into circuit operation like no equation does.
That's interactivity and innovation you can't find in best SPICE tools for PC like Multisim, LTspice, OrCad or PSpice (trademarks belong to their respective owners).
EveryCircuit is not just an eye candy. Under the hood it packs custom-built simulation engine optimized for interactive mobile use, serious numerical methods, and realistic device models. In short, Ohm's law, Kirchhoff's current and voltage laws, nonlinear semiconductor device equations, and all the good stuff is there.
Growing library of components gives you freedom to design any analog or digital circuit from a simple voltage divider to transistor-level masterpiece.
Schematic editor features automatic wire routing, and minimalistic user interface. No nonsense, less tapping, more productivity.
Simplicity, innovation, and power, combined with mobility, make EveryCircuit a must-have companion for high school science and physics students, electrical engineering college students, breadboard and printed circuit board (PCB) enthusiasts, and ham radio hobbyists.
Free version has limited sandbox area, but it can still impress you. If you need a larger playground, a full version is available. The full version will employ all of your imagination, and all the screen area of your tablet.
Thanks to Prof. N. Maghari for technical discussions, feedback, and help with designing circuit examples.
Features:
- Animations of voltage waveforms and current flows
- Animations of capacitor charges
- Analog control knob adjusts circuit parameters
- Automatic wire routing
- Oscilloscope
- Seamless DC and transient simulation
- Single play/pause button controls simulation
- Saving and loading of circuit schematic
- Mobile simulation engine built from ground-up
- Shake the phone to kick-start oscillators
- Intuitive user interface
- No Ads
- Sources, signal generators
- Resistors, capacitors, inductors, transformers
- Potentiometer, lamp
- Switches, SPST, SPDT
- Diodes, Zener diodes, light emitting diodes (LED)
- MOS transistors (MOSFET)
- Bipolar junction transistors (BJT)
- Ideal operational amplifier (opamp)
- Digital logic gates, AND, OR, NOT, NAND, NOR, XOR, XNOR
Required for iOS O/S : 1.6+

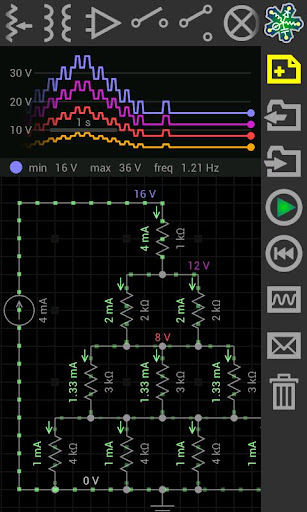

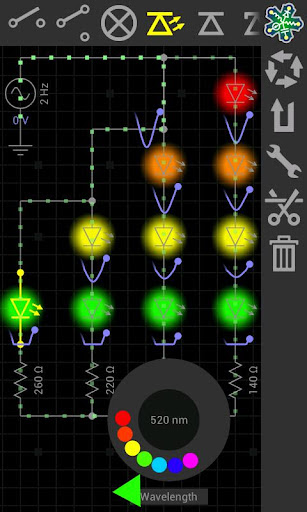

Screenshots :
